민수사업

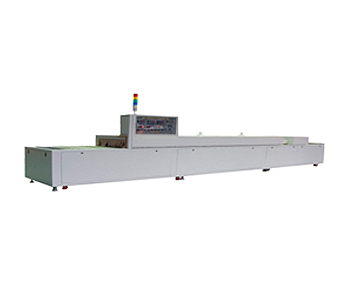

터널식오븐
Option
- PID Programmable Controller
- 100mm 6Point Hybrid Recorder
- In / Out Sliding Open Door
제작사양
| MODEL | BK-CDO-100 |
|---|---|
| Inside Dimension (W * D * H) mm | 750 * 6,000 * 200 |
| Outside Dimension (W * D * H) mm | 1,000 * 8,000 * 1,650 |
| Temp. Range | RT ~ +200℃ |
| Temp. Control | PID SSR Controller |
| Temp. Constancy | ±0.5℃ |
| Temp. Heater | Electric Ceramic Heater or STS Sheathed Pin Heater |
| Heating Time | RT ~ +200℃ / 60 min |
| Power | 220 / 380V 3Φ, 38 kW(Max.) |
| Material | Interior : STS304 Stainless Steel |
| Exterior : SS400 Color Coating | |
| Insulation | Glass Wool & Cerak Wool |
| Conveyor System | - Speed : 30 ~ 200 mm/min |
| - Length : In 10m, Out 12m | |
| - Material : STS Conveyor Belt | |
| Circulation System | Inner Circulator System Damper are Established |
| Safety Devices | - Earth Leakage Breaker(ELB) |
| - Over Heat Controller(OHP) | |
| - Alarm for the Over Heat | |
| - Short Circuit Breaker Moter | |
| - Overload Relay |
구조결합도
- 1 Air Cylinder
- 2 Sliding Door
- 3 Fan Motor
- 4 적외선 Heater
- 5 Tunnel Oven
- 6 Conveyor System
